THE CUBE NAVIGATION SYSTEM

An innovative navigation system for precise alignment of needles and other thin instruments in imaged guided punctures.

The system consists of planning software and patented Cube accessories.

Made to support radiologists with image guided interventions, double oblique and complex trajectories become easier to perform and more efficient compared to interventions without navigation.

Image of the Cube Navigation System comprising of PACS-connected CT-navigation planning software, and the sterile navigation aids Access Cube and Puncture Cube

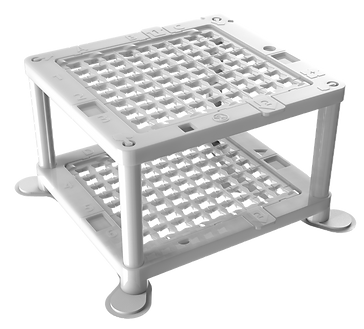

THE ACCESS CUBE

Fully dismantlable

for complete access to treatment site

Instruments up to 10G

For a large range of minimally-invasive procedures including ablations, biopsies, and other interventions with large instruments

Learn More

SMART PLANNING SOFTWARE

An image of a computer displaying a PACS planning software with an overlay of the Cube Navigation System including virtual needle and top and bottom templates of the Puncture Cube, with coordinates for percutaneous needle introduction highlighted in green.

Based on a standard PACS viewer, our planning software can be easily installed on a PC in the CT room and connected via standard DICOM interface - compatible with every CT and PACS system. It features a virtual needle (yellow line in image) to plan the intervention.

Using the position of the virtual needle, our proprietary algorithm calculates the best coordinates to use in the Cube's upper and lower template planes - instantly. Moreover, the software automatically corrects the needle path minimally to place the path of the virtual needle to the corners of the holes, to allow a stable and exact insertion of the puncture needle.

Request a demo

CALIBRATION FREE

No setup or calibration required - so you can get back to what really matters: your patients

UNIVERSALLY COMPATIBLE

Can be used with any CT imaging modality provider and can be used flexibly across your CT rooms

MAINTAINS WORKFLOW

Don't complicate your workflow. The CNS is easy to learn and integrates seamlessly into your clinical routine

HOW IT WORKS

1. PLACE

Place the Cube over target region of the intervention. Attach firmly using the adhesive pads on the feet

2. SCAN

Scan the target area with a standard planning scan

3. DETECT

The software detects the cube automatically in the planning scan images

4. PLAN

Use the virtual needle in the software to create a trajectory. The software calculates the best entry points on the Cube to reach the target

5. PERFORM

Move the needle through the holes on the upper and lower plate of the Cube as highlighted by the software and perform the puncture

REQUEST A DEMO

Want to know how the Cube Navigation System can benefit your practice?

Contact us and our team will reach out to you!
